Basic Info.
|
Model NO.
|
BR02 Trimming Machine
|
|
Transport Package
|
Wooden Case
|
|
Specification
|
3040*2600*1820mm
|
|
Trademark
|
BR02 Trimming Machine
|
|
Origin
|
China
|
Product Description

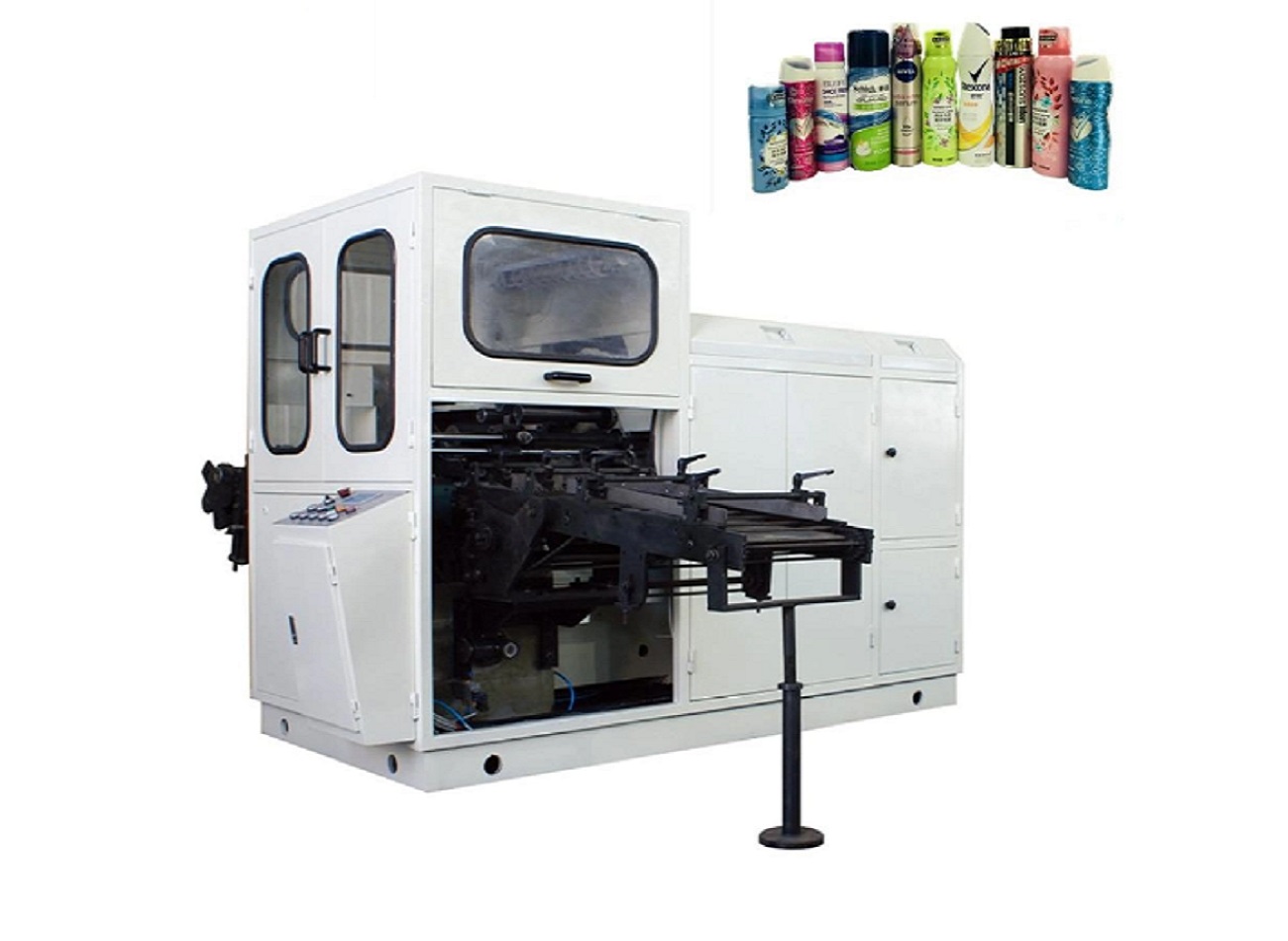

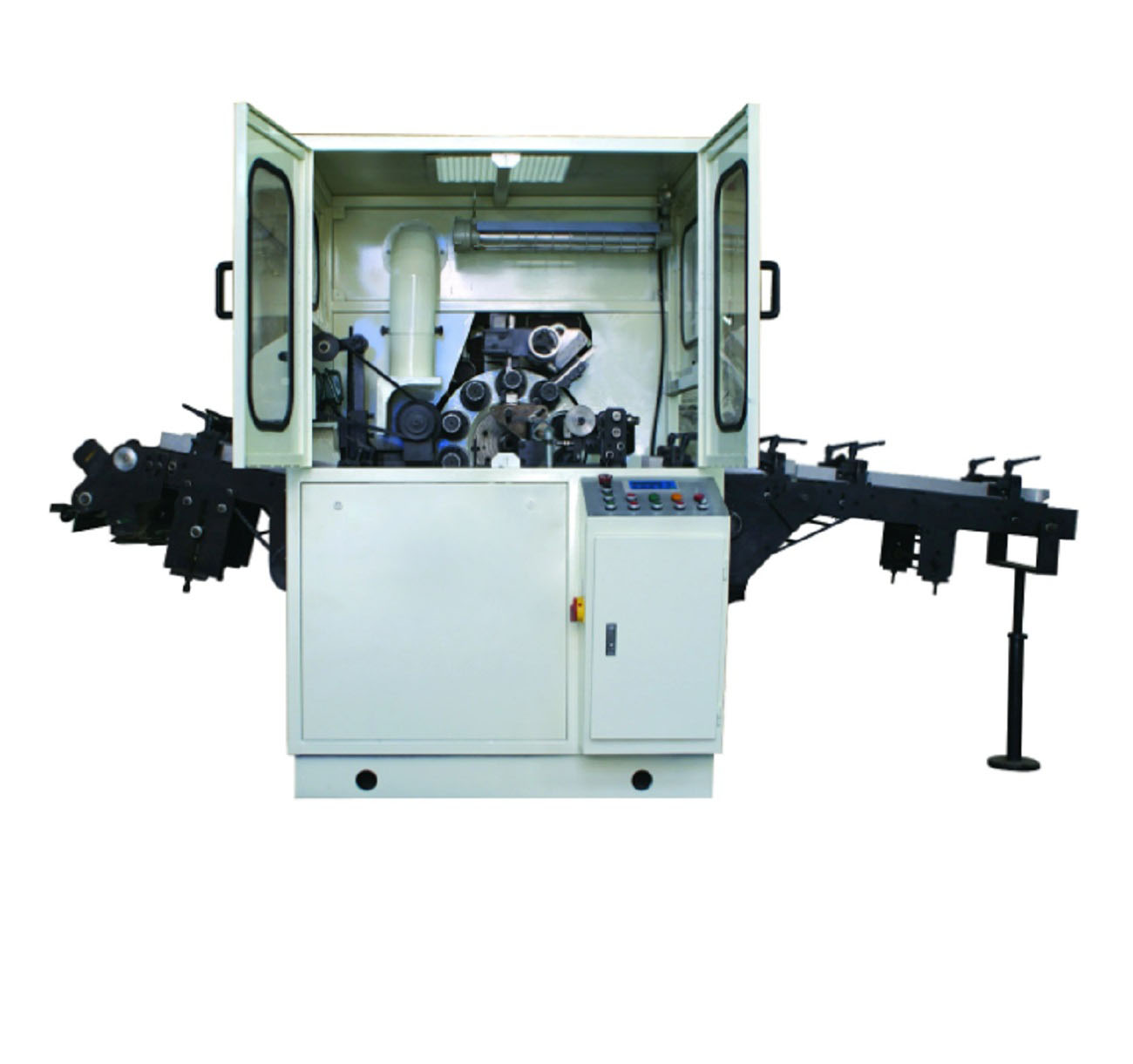

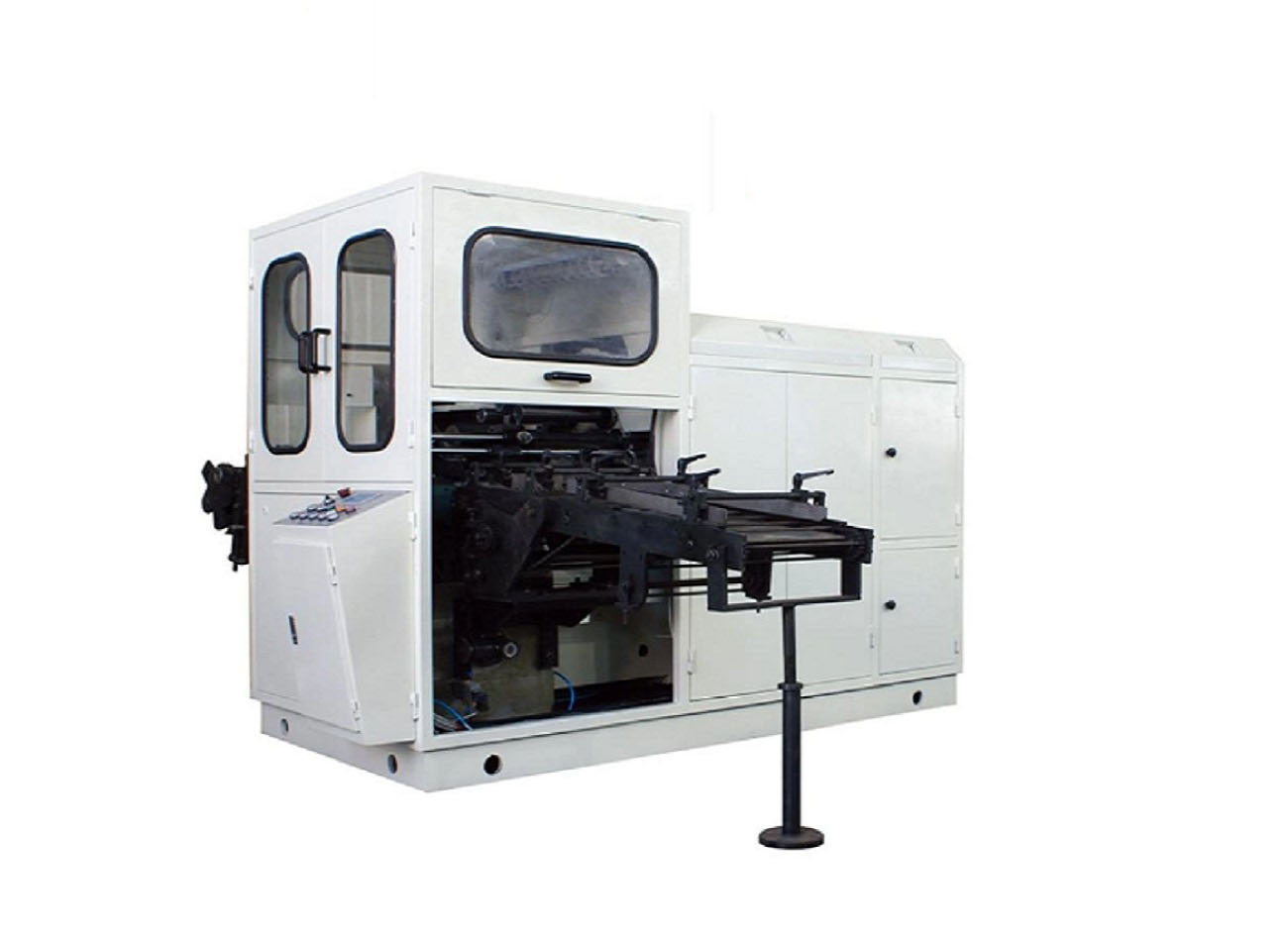

BR02 Trimming Machine is a professional equipment applied in metal aluminum can production line. It is used to cut the tail and polish the body of metal aluminum can. Cutting tail and polishing can be operated together or separately. Automatic loading and unloading of can, no polishing when metal aluminum cans are not available. Collecting tail ring and polishing powder. Automatic stopping when cans is loaded or unloaded badly. Controlled by PLC system. This machine can be used individually.
Main technical parameter
| NO. | Item | Data |
| 1 | Can diameter range | φ35mm-φ66mm |
| 2 | Can length range | ≤250mm |
| 3 | Production speed | ≤120cans/min |
| 4 | Total power | 12.85KW |
| 5 | Intake pressure | P=0.5MPa |
| 6 | Dimensions | 3040*2600*1820mm |
| 7 | Weight | about 3200KG |
Our advantages
- Superb R & D capability and stable factory.
- We have our own factory, and our technology has been tested for over 20 years.
- We offer mold design and production for Extrusion Press Machine and Necking Machine.
- We continuously expand our production scale, refine our technology, establish a sound quality management system and after-sales service system, and have won the approval and trust of domestic customers.
- Better Lead-time and stable production capacities.
- High quality and low price compared with other companies in China.
QA:
What’s the MOQ?
A: 1 set.
Q: Are you trading company or manufacturer?
A: Both. We have our own factory to produce machines and also as the agents of some materials, such as parts, slug, latex…
Q: How long is your delivery time?
A: 1-10 months by negotiation.
Q: What’s the warranty time?
A: One year start from installed.
Q: How to use?
A: We offer paid installation, commissioning and training.
Q: Can I visit your factory?
A: You’re welcomed any time.
